Straps for Rod Track Rails – Cam Buckle & Ratchet Compared

Ratchet straps for rod track rails are a practical solution when cargo needs to be secured safely in vans, trailers and commercial vehicles using existing rod track rails. With suitable flat hooks with safety pin, these straps can be securely attached to the rail or to suitable lashing points. This creates a reliable connection between the strap, the vehicle and the load.

Different versions are suitable depending on the transport task. For sensitive or lightweight cargo, straps with cam buckle are ideal because they are intentionally tightened by hand only. For higher pre-tension and more rigid loads, ratchet straps are the better choice. On this page, you will find the key differences, applications and technical features at a glance.

Ratchet straps for rod track rails are lashing straps with suitable end fittings for safe load securing on rod track rails and lashing points. For sensitive cargo, versions with a cam buckle are ideal, while ratchet straps should be used for higher pre-tension and heavier goods. The most important factors are webbing width, lashing capacity, pre-tension force and the correct match to the load being transported.

Ratchet straps for rod track rails – what are the practical benefits?

In daily commercial use, speed, safety and consistency matter. This is exactly where ratchet straps for rod track rails show their strengths. Thanks to the matched flat hooks, the straps can be attached cleanly to the rail, while the spring-loaded safety pin helps reduce the risk of the hook slipping out during transport.

At the same time, different designs make it possible to choose the right strap for the cargo. This is a major advantage over general-purpose straps without a clear application focus. Depending on the requirement, you can choose between gentle load securing with a cam buckle and stronger load restraint with a ratchet.

Especially when cargo changes frequently, this distinction matters. Anyone transporting sensitive furniture, lightweight components or delicate surfaces needs a different solution than someone regularly securing heavy boxes, machines or workshop equipment.

Cam buckle or ratchet – which strap for rod track rails is the right choice?

The most important basic decision when choosing straps for rod track rails is whether to use a cam buckle or a ratchet. Both systems have their place, but they are designed for different applications.

A cam buckle strap is tightened by hand only. This makes it ideal when high clamping pressure is not wanted. A ratchet strap, on the other hand, allows significantly higher pre-tension and is the right solution for heavier or more rigid cargo.

This is exactly why a good landing page should not simply list products, but also explain the selection logic. That way, it becomes much clearer which version is actually right for a specific application.

Which straps for rod track rails suit which type of application?

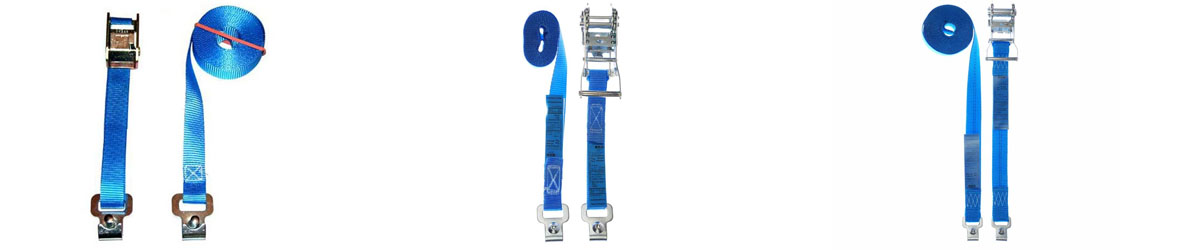

The three versions presented here cover different requirements. The cam buckle strap is designed for gentle securing. The 25 mm ratchet strap is the compact solution for everyday professional use. The 35 mm ratchet strap is the stronger version for higher lashing forces and greater safety reserve.

Which strap for rod track rails suits which type of cargo?

In practice, a clear application guide is often more helpful than pure technical data. That is why the key question is: which strap is actually suitable for which kind of load?

Cam buckle strap for rod track rails – gentle securing for sensitive cargo

The cam buckle strap was developed specifically for the gentle securing of lightweight transport goods. It is ideal for applications where high pre-tension is neither wanted nor necessary, such as furniture transport, delicate items or light cargo units in a van.

Unlike ratchet straps, tension is generated by hand only. This reliably prevents over-tightening. A particularly practical detail is the short buckle-side strap length of only 350 mm. Depending on the installation situation, the buckle can hang freely and does not rest on the cargo.

This design helps reduce the risk of pressure marks or damage and makes the strap an ideal solution for sensitive transport. At both ends, the strap is fitted with flat hooks with spring-loaded safety pin, helping prevent accidental release from the rod track rail or lashing point during transport.

In combination with a rubber-coated rod track rail, this creates a particularly gentle securing solution. That is exactly why this version is a useful addition to classic ratchet straps whenever sensitive cargo needs to be secured reliably.

25 mm ratchet strap for rod track rails – compact and professional

The 25 mm wide ratchet strap is a reliable solution for load securing in vans, trailers and commercial vehicles. It is suitable for use with rod track rails and standard lashing points and stands out thanks to its compact design, high pre-tension and durable construction.

With a standard tension force of 230 daN, the cargo is pressed down onto the loading surface reliably. The webbing is rated up to 1,000 daN in loop lashing and has a very low elongation of only 5 %. The integrated pressure ratchet is designed as a robust industrial ratchet for long service life.

The flat hooks with spring-loaded safety pin are suitable for rods or lashing points up to 8 mm material thickness. It is important that the rod or lashing point always sits directly in the base of the hook so that the full lashing capacity can be transmitted safely.

Thanks to its two-part design, the strap can be used flexibly and adapted precisely to different loading situations. This makes it a strong all-rounder for many professional applications in vans and trailers.

35 mm ratchet strap for rod track rails – higher lashing force for more demanding jobs

The two-part 35 mm wide ratchet strap features a flat hook with spring-loaded safety pin at both ends. This helps reduce the risk of the hook slipping out of the rod track rail during transport and supports a secure connection between strap and vehicle structure.

With a lashing capacity of 1,500 daN in loop lashing, this version is noticeably stronger than the 25 mm strap. It is therefore especially suitable for applications where higher safety reserves or stronger restraint are needed. Despite the higher capacity, the two-part design keeps handling practical and straightforward.

If you are looking for a stronger solution within the rod track rail system than a 25 mm strap, this version is a suitable choice for more robust cargo and more demanding securing situations.

25 mm vs 35 mm straps for rod track rails – which width makes sense?

Besides the decision between cam buckle and ratchet, webbing width also plays an important role. 25 mm is more compact and versatile in everyday use. 35 mm offers more lashing force and is better suited for applications with higher restraint demands.

DIN EN 12195-2, LC, STF and SHF – what do these values mean?

If you want to choose straps for rod track rails correctly, it is not enough to look only at length and width. The technical values also play an important role and help with the right assessment.

• DIN EN 12195-2 defines the standard for lashing straps used in road transport.
• LC stands for lashing capacity and indicates the load capacity of the strap.
• STF means standard tension force, which is the pre-tension that can be generated with the ratchet.
• SHF means standard hand force, indicating the hand force applied to operate the ratchet.

Especially in professional load securing, it makes sense to look at these values together instead of relying on general product claims. This makes it much easier to judge whether a strap is really suitable for the intended use.

Discard criteria and safety notes for straps used with rod track rails

Lashing straps do not have a fixed expiry date. However, they must no longer be used once safety-relevant damage or changes are visible. Regular visual inspection before use is therefore essential to ensure safe load securing over time.

Typical reasons for discard related to the webbing

• broken yarns or clearly visible wear
• cuts of more than 10 % at the web edge
• damaged, loose or torn stitching
• deformation caused by heat or aggressive chemicals

Typical damage to cam buckle, ratchet and fittings

• malfunction or stiff-running mechanism
• bent or damaged metal parts
• widening of flat hooks by more than 5 %
• heavy corrosion, cracks or permanent deformation

Labelling

• missing, damaged or illegible label

A strap without clearly legible identification must no longer be used in accordance with DIN EN 12195-2. That is why regular inspection is an essential part of safe load securing practice.

Care instructions for long service life

To maintain long-term function and safety, the cam buckle, ratchet and fittings should be cleaned regularly and lightly lubricated if necessary. This is especially important when used outdoors, in damp conditions or in dirty working environments.

With proper care, correct use and regular inspection, straps for rod track rails remain ready for use over the long term and continue to perform their safety-relevant role reliably in everyday transport work.

Conclusion: choose straps for rod track rails according to cargo and application

Straps for rod track rails perform best when they are selected to match the cargo. For sensitive and lightweight goods, the cam buckle strap is the gentle solution. For professional everyday use in vans and trailers, the 25 mm ratchet strap is a strong all-rounder. When higher lashing forces and more safety reserve are required, the 35 mm ratchet strap is the right choice.

This product group therefore covers both sensitive transport tasks and robust commercial applications. That is exactly what makes a strong landing page: it does not just help users find products, it also helps them choose the right one.
