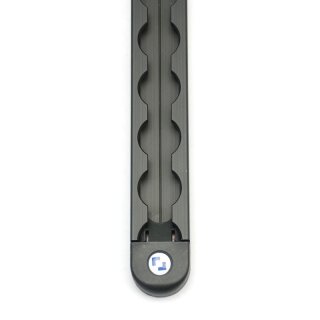

Black airline rail, narrow Light black as corner profile
The 1.5-meter-long black powder-coated airline rail is one of the narrowest lashing rails available in the airline system, with a width of only 28 mm.
Special price!!!, as the airline rails have inclusions on the surface of the powder coating.It can be installed in the smallest of spaces where there is very little room available.
We also have the matching
end cap for this airline rail in our range. This can be purchased as an option.
The airline rail as a black corner profile is not pre-drilled and can therefore be glued outdoors with Sikaflex 554, for example, or drilled at the desired points.
Only at the ends of the airline rail is there a drill hole due to the manufacturing process.
Length: 1.5 meters (1,495 mm)
Installation depth: 11 mm
Width: only 28 mm
Hole diameter: 20 mm
Hole/grid spacing: 25 mm - metric
Material: aluminum - black powder-coated
Weight: 0.69 kg
Manufacturer: allsafe
Made in Germany The permissible load capacities
are achieved under the following conditions:
An important point when installing an airline rail is the fastening in the substrate.
Depending on the condition, material composition, and thickness of the substrate surface, different values are achieved. We recommend that you follow the manufacturer's installation guidelines. The screws must be set at a distance of 75 mm with a metric grid spacing of 25 mm (76.2 mm with 25.4 mm grid spacing)! Screws with a strength
of at least 10.9 must be used, with self-locking nuts and washers!
For standard Airline lashing rails, M6 screws must be used!
The Light profiles are fastened with M5 screws! The installer of the load securing
aids is responsible for the installation and the resulting possible load!
