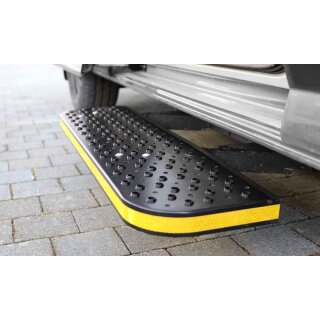

This
automatic step for the Renault Master IV from 2024 ensures safe and comfortable access for both commercial and private use. Depending on your needs, you can choose between an
electric or
manual version – both systems are specially designed for the new Master generation.
The step has a generous
step surface measuring 975 x 248 mm and a load capacity of 250 kg. This ensures a safe, stable footing – even with frequent entry and exit in everyday commercial use.
Which step is suitable for the Renault Master from 2024 onwards?
Automatic steps are available for the Renault Master IV in electric or manual versions. The electric version offers a 2-second extension time, anti-pinch protection, RGB status display, and camping mode. The manual version impresses with its robust mechanics and low-maintenance operation.
Suitable for Renault Master IV (from 2024)
The entry systems are compatible with the following vehicle variants of the current Master generation
| Designation |
Wheelbase |
Overall length |
Vehicle height |
| L2H2 |
3,585 mm |
5,680 mm |
2,498 mm |
| L3H2 |
4,215 mm |
6,310 mm |
2,498 mm |
| L3H3 |
4,215 mm |
6,310 mm |
2,778 mm |
| L4H3 |
4,215 mm |
7,075 mm |
2,778 mm |
💡 Note: Vehicle length under item 18, vehicle height under item 20, year of manufacture under item 6 in the vehicle registration document.
Electric automatic step – maximum comfort
The electric version is motor-driven and extends automatically when the sliding door is opened. It retracts automatically when closing – with an extension time of only approx. 2 seconds.
- Anti-trap protection with automatic shut-off
- RGB status display in the dashboard
- Automatic, manual, and combined modes
- Camping mode for permanently open doors
- Powerful motor with low standby consumption
- Clear electronic end position detection
- ECE R10 (EMC compliant)
- Connection for additional external LED
An integrated emergency release allows manual operation in exceptional cases.
Mechanical step – door-integrated & low-maintenance
The mechanical version operates completely without a motor or electronics. It is door-integrated, which means:
A sturdy actuating arm is mounted directly on the sliding door. When the door is opened, the step is extended mechanically; when the door is closed, it retracts automatically.
- No electrical connection required
- Extremely robust mechanics
- Low maintenance and durable
- Ideal for construction sites and fleet use
- Independent of on-board electronics
This solution is particularly suitable for users who prefer a mechanically reliable and economical entry aid.
Electric or mechanical – which version should you choose?
The electric step offers maximum comfort and intelligent safety features. The mechanical, door-combined version impresses with its simple technology, robustness, and independence from electrical systems.
🔍 Comparison – electric vs. door-integrated step (Renault Master IV from 2024)
| Criterion |
Electric (motorized) |
Mechanical (door-integrated) |
| Activation |
Automatic via control |
Automatic via door arm on the sliding door |
| Comfort |
Very high (status display, modes) |
High (automatic, but without electronics) |
| Safety |
Anti-pinch protection, end position detection, fault message |
Mechanically reliable (without electronic monitoring) |
| Camping/standby mode |
Camping mode available |
Door-dependent (moves with door movement) |
| Energy consumption |
Very low standby consumption |
No power consumption |
| Installation/integration |
Connection to on-board electrical system + display |
Mounting Door arm on sliding door, without electrical system |
| Recommended for |
Comfort and frequent users, campers, premium solution |
Fleet, construction site, robust & simple solution |
Conclusion: Flexible entry solution for the Renault Master 2024
Whether electric or mechanical, these automatic steps for the Renault Master IV from 2024 offer a professional and durable entry solution for commercial, trade, and camping use.
Choose the right variant for your application profile and benefit from a well-designed retrofit solution for the new Master generation.
Frequently asked questions about the automatic step for the Renault Master IV (from 2024)
Which Renault Master is the step suitable for?
The automatic step is suitable for the Renault Master IV from 2024 onwards. It is compatible with the L2, L3, and L4 variants.
On which side of the vehicle is the step mounted?
This version is designed exclusively for the right-hand sliding door (passenger side). Installation on the left-hand side of the vehicle is not possible.
What is the difference between the electric and mechanical versions?
The electric step is motor-driven and offers functions such as anti-pinch protection, RGB status display, and camping mode. The mechanical, door-integrated version is controlled by an arm mounted on the sliding door and works entirely without electronics.
What are the dimensions of the step?
The step surface measures 975 x 248 x 45 mm and offers a generous, safe stepping surface for everyday use.
Is the step suitable for camping or continuous use?
Yes. The electric version has an integrated camping mode that prevents automatic retraction when the door is permanently open. The mechanical version remains extended as long as the sliding door is open.
