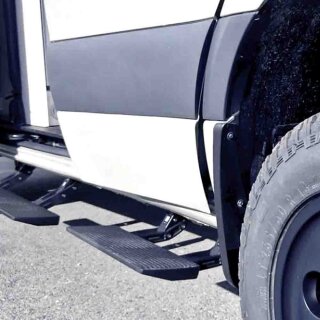

Fully automatic step for right front door on MB Sprinter

Fully automatic step for right front door on MB Sprinter

SKU: 110ETB550-MS-FT-R
Category: elektrische Schwenkstufe ETB

Fully automatic electric step for the right front door (passenger side) of the Mercedes Sprinter with all-wheel drive. Automatic extension and retraction, integrated obstacle detection, LED lighting, and 150 kg load capacity for safe entry.

1.239,00 €

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Description
PDF (1)

Tall vehicles such as the Mercedes Sprinter place special demands on comfort and safety when getting in and out of the vehicle on a daily basis. This fully automatic electric step for the right front door (passenger side) has been specially developed for Sprinter models with all-wheel drive and ensures safe, comfortable access – completely automatically and almost invisibly while driving.

Electric step for the right front door of the Mercedes Sprinter (AWD)

The step extends automatically when the right front door is opened and provides a stable surface to step on. After the door is closed, it retracts automatically back under the vehicle and does not affect ground clearance or the vehicle's appearance.

Please note: This version is only suitable for Mercedes Sprinters with all-wheel drive (AWD). Front-wheel drive vehicles (type 910) are not compatible.

Compatible Mercedes Sprinter variants

The fully automatic step is designed for the following vehicle models:

**Suitable vehicle configurations – all-wheel drive (W906 / W907)**
Designation	Drive / Type	Wheelbase	Overall length	Vehicle height
L2H2	All-wheel drive – W906 / W907	3,665 mm	5,932 mm	2,620 mm
L3H2	All-wheel drive – W906 / W907	4,325 mm	6,967 mm	2,616 mm
L4H2	All-wheel drive – W906 / W907	4,325 mm	7,367 mm	2,613 mm

Note: Information on vehicle length (item 18), vehicle height (item 20), and year of manufacture (item 6) can be found in the German registration certificate, Part I.

Comfort and safety features at a glance

The electric step has been designed for regular use in real-world conditions and impresses with its intelligent safety features and robust construction.

Integrated obstacle detection

Automatic obstacle detection monitors the swivel range of the step. If resistance is detected, the extension process stops immediately to prevent damage to the vehicle, step, or surroundings.

LED illumination of the entry area

An integrated LED light ensures even illumination of the step area in the dark. This increases safety when getting in and out of the vehicle – especially in poor lighting or weather conditions.

Installation, scope of delivery, and legal information

The step is supplied as a vehicle-specific complete set and is precisely tailored to the Mercedes Sprinter with all-wheel drive.

Scope of delivery

Fully automatic electric step
Vehicle-specific cable set
Control unit
Mounting bracket and fastening material
Detailed installation instructions

Important note: Installation must only be carried out by an authorized specialist workshop. The installation instructions should be checked carefully before ordering.

TÜV and registration exemption

Side-retractable steps are not considered relevant to the vehicle width according to EC Directive 97/27 and therefore do not usually need to be entered in the vehicle documents.

The installation does not invalidate the operating license in accordance with § 19 (2) StVZO and does not usually require approval in accordance with § 21 StVZO.

Technical data of the electric step

The most important technical characteristics of the step are summarized below:

**Technical specifications**
Feature	Specification
Vehicle	Mercedes Sprinter (AWD)
Year	From 2006
Installation position	Right front door (passenger side)
Step surface	550 × 160 mm
Max. load capacity	150 kg
Net weight	approx. 19 kg
Assembly time	Approx. 3–4 hours
Certificate	No registration required

Important information about fit

Please note the following restrictions before purchasing:

Exclusively for the right front door (passenger side)
Only for all-wheel drive (AWD) vehicles
Not suitable for front-wheel drive Type 910
Not compatible with Achleitner or IGLHAUT all-wheel drive conversions
Due to its design, the step is slightly slanted at an angle of approx. 10–15° when extended
Also suitable for vehicles with Webasto parking heater

Features and design characteristics

The fully automatic step offers extensive standard equipment and is designed for a long service life:

Automatic obstacle detection (autostop function)
Vehicle-specific brackets and mounting points
Integrated control unit with cable set
Virtually unrestricted ground clearance
Visually unobtrusive when retracted
Comfortable entry height thanks to swivel mechanism
Fast, fully automatic retraction and extension
Tested for more than 100,000 switching cycles
Functionally reliable from −30 °C to +80 °C

Product safety and installation instructions

Installation may only be carried out by qualified personnel. Work on electrical components must be carried out by appropriately trained electricians to ensure safe and trouble-free operation in the long term.
