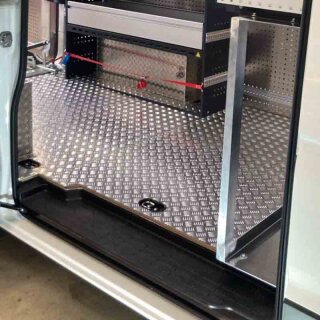

An aluminum checker plate transporter floor for the Ford Transit Custom from model year 2024 onwards provides lasting protection for the cargo area against wear, moisture, and mechanical stress. The vehicle floor is subject to heavy daily wear and tear, especially in commercial use—for example, in trades, service, or courier services. A custom-fit transporter floor with aluminum checker plate provides a robust, slip-resistant, and durable loading area.
📌 Quick overview – aluminum van floor for Ford Transit Custom
- Vehicle-specific for Ford Transit Custom from 2024
- Non-slip aluminum checker plate surface
- 9 mm or 12 mm thick birch plywood
- CNC-milled for a precise fit
- Ideal for trades, commercial, and fleet vehicles
Transporter floor for Ford Transit Custom – perfectly fitting cargo area protection
The aluminum checker plate van floor for the Ford Transit Custom is CNC-milled and precisely adapted to the contours of the cargo area. This ensures that the floor panel fits neatly and reliably protects the original vehicle floor from damage caused by tools, machines, or heavy loads.
The carrier plate is made of sturdy birch plywood, onto which a 1.5–2.0 mm thick aluminum checker plate is applied. The quintet structure of the checker plate provides additional slip resistance and improves slip resistance in everyday work.
The floor is specially designed for the Ford Transit Custom with a short wheelbase.
📏 Vehicle dimensions – Ford Transit Custom L1 from 2024
| Designation |
Wheelbase |
Overall length |
Cargo area length |
Cargo area height |
Vehicle height |
| L1H1 |
3,100 mm |
5,050 mm |
2,602 mm |
1,314 mm |
1,959 mm |
| L1H2 |
3,100 mm |
5,050 mm |
2,602 mm |
1,314 mm |
1,959 mm |
Note: The vehicle length can be found in the vehicle registration document under point 18, the vehicle height under point 20, and the year of manufacture under point 6.
Material structure of the aluminum transporter floor
The transporter floor combines several materials to ensure stability, moisture resistance, and durability. The base is made of high-quality birch plywood, which is optimized for vehicle use.
- 9 mm or 12 mm thick birch plywood
- phenolic resin glued according to EN 312-2 / Class 3
- 1.5–2.0 mm aluminum checker plate (quintet)
- Oil, water, and wear-resistant surface
- UV-resistant and durable
This combination creates a particularly robust loading area that functions reliably even with intensive use in everyday commercial applications.
Easy installation in the cargo area
The floor panels are delivered in several parts. This makes it easier to insert the transporter floor for the Ford Transit Custom into the cargo area and align it precisely.
The individual segments are screwed together after insertion. This creates a stable, closed loading area. The screw connections are barely visible after installation and do not interfere with daily use.
The lashing recesses supplied are inserted into the designated recesses and screwed to the vehicle's original lashing points.
Optional: Airline rails for load securing
For professional applications, the floor can be optionally equipped with airline rails. These are integrated transversely to the direction of travel under the roof rails and enable flexible load securing.
- Airline rails approx. 0.9 m long
- Ideal for locking bars and lashing straps
- Precisely milled and glued
- Only possible with 9 mm floor panels
Other positions or lengths can be implemented on request.
Aluminum checker plate or screen-printed floor – the difference
While classic screen-printed floors have a smooth surface, an aluminum checker plate transporter floor offers additional advantages in everyday use.
🔍 Comparison – aluminum checker plate vs. screen-printed floor
| Feature |
Aluminum checker plate |
Screen-printed floor |
| Slip resistance |
Very high |
Medium |
| Resistance to wear |
Very high |
High |
| Cleaning |
Very easy |
Good |
| Area of application |
Intensive commercial use |
Standard cargo area protection |
Conclusion: Robust cargo area protection for the Ford Transit Custom
An aluminum checker plate transporter floor for the Ford Transit Custom from 2024 offers a durable and resilient solution for everyday work use. The combination of birch plywood base plate and aluminum surface effectively protects the vehicle floor while ensuring a safe and slip-resistant loading area.
Frequently asked questions about the transporter floor for Ford Transit Custom
Which Ford Transit Custom models is the floor suitable for?
The aluminum checker plate transporter floor is designed for the Ford Transit Custom with a short wheelbase from 2024 onwards.
How thick is the van floor?
The floor is available in 9 mm or 12 mm thick birch plywood panels, each with aluminum checker plate on top.
Can the floor be equipped with airline rails?
Yes. Airline rails can be integrated as an option. These are milled and glued to fit perfectly.
Is the van floor slip-resistant?
Yes. The aluminum checker plate surface with a quintet structure offers very good slip resistance.
Is the floor also suitable for station wagons or double cabs?
No. This floor is intended exclusively for panel vans without seat rails.
