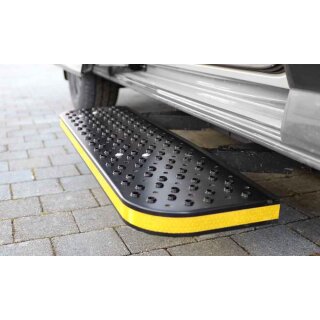

This automatic step for the Ford Transit built in 2014 or later with rear-wheel drive (RWD) was specially developed for vehicles with a higher entry height. It makes daily access much easier, especially for rear-wheel drive models – ideal for tradespeople, service vehicles, and fleet use.
With a sturdy step surface measuring 975 x 248 x 45 mm and a maximum load capacity of 250 kg, the step provides a safe and resilient surface – even with intensive commercial use.
Why is a step particularly useful for the Transit RWD?
The higher ground clearance with rear-wheel drive results in a larger entry edge. The automatic step compensates for this difference in height and significantly increases comfort and work safety.
Suitable for Ford Transit (from 2014, rear-wheel drive)
🚐 Compatible with the following vehicle variants:
🚐 Vehicle variants – Ford Transit from 2014 (RWD)
| Designation |
Rear door(s) |
Wheelbase |
Overall length |
Vehicle height |
| L2H2 |
Wing doors |
3,300 mm |
5,530 mm |
2,500 mm |
| L2H3 |
Swing doors |
3,300 mm |
5,530 mm |
2,750 mm |
| L3H2 |
Swing doors |
3,750 mm |
5,980 mm |
2,547 mm |
| L3H3 |
Swing doors |
3,750 mm |
5,980 mm |
2,750 mm |
| L4H3 |
Swing doors |
3,750 mm |
6,700 mm |
2,750 mm |
Electric automatic step – comfort at the touch of a button
The electric version extends automatically when the right-hand sliding door (passenger side) is opened and retracts again when it is closed – with an extension time of approx. 2 seconds.
- Anti-trap protection with automatic shut-off
- RGB status display in the driver's area
- Automatic, manual, and combined modes
- Camping mode for stationary operation
- Powerful motor with minimal standby consumption
- Electronic end position detection
- ECE R10-compliant electronics
With a load capacity of up to 250 kg, the step is designed for heavy loads.
Mechanical step – door-mounted & extremely robust
The mechanical version operates without electrical components. A sturdy door arm is mounted on the right-hand sliding door and controls the movement purely mechanically.
- No power connection required
- Very robust construction
- Low maintenance and durable
- Ideal for construction sites and fleet operation
Electric or mechanical – a direct comparison
🔍 Comparison – electric vs. combined step (Ford Transit RWD from 2014)
| Criterion |
Electric |
Mechanical |
| Activation |
Motor via door signal |
Mechanical door arm |
| Comfort |
Very high |
Robust & functional |
| Load capacity |
250 kg |
250 kg |
| Power consumption |
Very low |
No power requirement |
| Recommended for |
Comfort & service vehicles |
Fleets & construction site operations |
Conclusion: The right solution for the Ford Transit RWD
Whether electric or mechanical, this automatic step for the rear-wheel drive Ford Transit offers a durable and resilient entry solution with a load capacity of 250 kg – especially for vehicles with a raised entry height.
