A roof rack is the ideal solution for cleverly expanding the loading capacity of your van. 🚐 Designed specifically for the Iveco Daily from 2014 onwards, the black aluminum roof rack from Rhino offers a robust, aerodynamic, and TÜV-approved way to transport bulky or long goods safely. Thanks to its sturdy construction and low weight, it is perfect for tradespeople, businesses, and everyday use.
Roof rack for Iveco Daily made of black aluminum
- ✔ Aerodynamic design – cross tubes reduce wind noise and drag
- ✔ Practical rear rollers – across the entire width for convenient loading and unloading
- ✔ Flexible crossbars – can be positioned individually along the rail
- ✔ Durable and corrosion-resistant – galvanized aluminum, robust and weatherproof
- ✔ Quick installation – takes approx. 35–45 minutes, TÜV-approved & 20 g crash-tested
🚐 Vehicle variants – Iveco Daily from 2014 onwards
| Designation |
Rear door(s) |
Wheelbase |
Overall length |
Vehicle height |
Roof rack size |

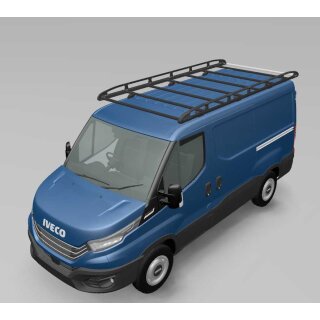

| L1H1 |
Wing doors |
3,000 mm |
5,149 mm |
2,280 mm |
3.2 m x 1.6 m |

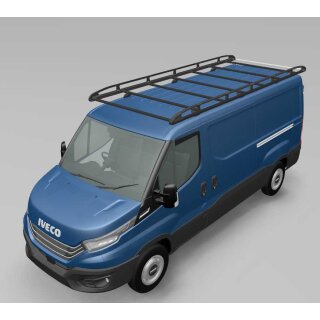

| L2H1 |
Swing doors |
3,520 mm |
5,669 mm |
2,280 mm |
3.8 m x 1.6 m |

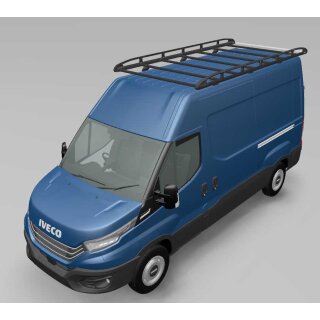

| L2H2 |
Swing doors |
3,520 mm |
5,669 mm |
2,660 mm |
3.2 m x 1.6 m |

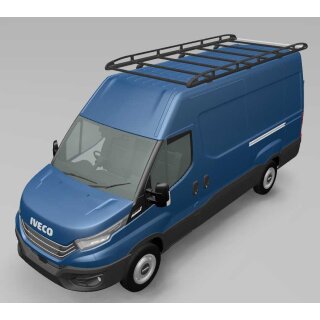

| L3H2 |
Swing doors |
3,520 mm |
6,047 mm |
2,660 mm |
3.6 m x 1.6 m |
| L3H3 |
Swing doors |
3,520 mm |
6,047 mm |
2,860 mm |
3.2 m x 1.6 m |
ℹ Note: The vehicle length can be found in the vehicle registration document under point 18, the vehicle height under point 20 and the year of manufacture under point 6 (information for German vehicle registration documents).
The height of the roof rack is approx. 24 cm from the top edge of the roof to the top edge of the rack.
Installation of the aluminum roof rack
➡ The Rhino aluminum roof rack is mounted at the fixing points provided by the manufacturer.
➡ Remove the plastic caps on the roof to reveal the mounting points underneath.
➡ Pre-assemble the mounting feet on the rack, screw them in place, and you're done.
🛠 A detailed installation plan can be found in advance under "Technical Details."
Features of the aluminum roof rack
- ✅ Sturdy roof basket made of galvanized aluminum
- ✅ Quick and easy installation
- ✅ Can be combined with many accessories
- ✅ Significant increase in transport volume
- ✅ Suitable for tailgates and wing doors
Extensions & optional accessories
Practical accessories are available for the roof rack to expand your transport options:
🔹 Transport tube – Porte Tube Pro
- Aerodynamic, lightweight, and stable
- Lockable steel end wall
- Max. load capacity 50 kg – ideal for pipes, long items, and cable ducts
- Installation in just 15 minutes – no drilling required
🔹 Ladder clamp – Safe Clamp
- Up to 5× faster than standard clamps
- TÜV GS-certified and crash-tested
- Anti-theft device included as standard
🔹 LadderStow ladder holder
- Ergonomic solution for quick loading and unloading
- For ladders with up to 3 sections
- Made of anodized aluminum
🔹 Running board / platform
- Facilitates the loading of bulky goods
- Includes matching mounting hardware
👉 This makes the aluminum roof rack for Iveco Daily the perfect combination of stability, functionality, and flexibility—and a durable transport solution for professionals!
