The black aluminum roof rack for Toyota ProAce Max models built from 2024 onwards has been specially developed for modern vans with high loading requirements. The aerodynamically shaped cross profiles reduce wind noise and drag – ideal for long motorway journeys and daily commercial use.
Why choose this roof rack for the Toyota ProAce Max?
Flow-optimized aluminum profiles, integrated rear roller across the entire width, flexibly adjustable crossbars, and robust construction make this system the professional transport solution for trades, construction, and service.

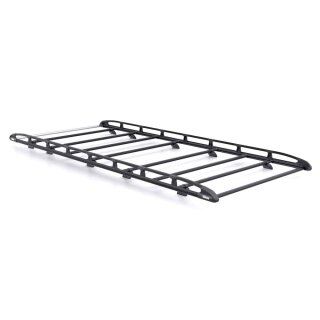

Black aluminum roof rack for Toyota ProAce Max (from 2024)
This black roof rack combines modern design with high functionality. The galvanized aluminum construction is corrosion-resistant, durable, and significantly lighter than classic steel constructions.
The aerodynamic design reduces wind noise – particularly noticeable at higher speeds.
Includes rear roller: The continuous roller makes it easier to load ladders, pipes, and long items safely and comfortably.
Compatible vehicle models
🚐 Vehicle data – Toyota ProAce Max
| Designation |
Rear door(s) |
Wheelbase |
Overall length |
Vehicle height |
Roof rack size |

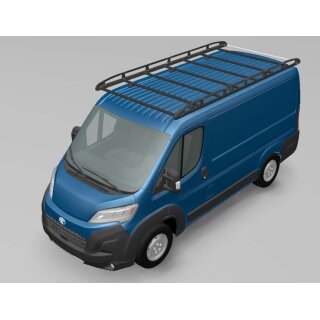

| L1H1 |
Wing doors |
3,000 mm |
4,963 mm |
2,254 mm |
3.2 m × 1.7 m |
| L2H1 |
Swing doors |
3,450 mm |
5,413 mm |
2,254 mm |
3.2 m × 1.7 m |
| L2H2 |
Swing doors |
3,450 mm |
5,413 mm |
2,524 mm |
3.2 m × 1.7 m |
| L3H2 |
Swing doors |
4,035 mm |
5,998 mm |
2,524 mm |
3.8 m × 1.7 m |
| L3H3 |
Swing doors |
4,035 mm |
5,998 mm |
2,764 mm |
3.6 m × 1.6 m |
| L4H2 |
Swing doors |
4,035 mm |
6,363 mm |
2,524 mm |
4.2 m × 1.7 m |
| L4H3 |
Swing doors |
4,035 mm |
6,363 mm |
2,764 mm |
4.2 m × 1.6 m |
Note: For vehicle length, see vehicle registration document, item 18; for vehicle height, see item 20; for year of manufacture, see item 6.
Technical specifications
⚙️ Technical data
| Feature |
Value |
| Material |
Galvanized aluminum (black coated) |
| Assembly time |
Approx. 35–45 minutes |
| Height from top edge of roof |
Approx. 24 cm |
| Rear roller |
Integrated across entire width |
| Cross profiles |
Freely movable |
Comparison – aluminum roof rack vs. steel roof rack
The weight of the roof rack plays an important role, especially with large vans such as the Toyota ProAce Max. Aluminum offers clear advantages over classic steel constructions in this regard.
🔍 Material comparison
| Feature |
Aluminum |
Steel |
| Weight |
Significantly lighter |
Heavier |
| Corrosion resistance |
Very high |
More susceptible to rust when damaged |
| Wind noise |
Reduced by aerodynamic profile |
Often louder |
| Ease of installation |
Simple & precise |
Usually more complex |
| Appearance |
Modern, black |
Technical industrial look |
For commercial users, this means less weight on the roof, better aerodynamics, and lower long-term maintenance costs.
Installation
Installation is carried out on the vehicle's factory-fitted fixing points. Plastic covers are removed and the mounting feet are screwed into place. Detailed instructions are available.
Optional accessories
- Porte Tube Pro – transport tube up to 50 kg
- Safe Clamp – quick ladder fixation
- LadderStow – ergonomic ladder holder
- Walkway/platform – safe roof access
- Aluminum rear door ladder – non-slip & stable
Conclusion – Professional transport solution for the ProAce Max
The black aluminum roof rack for the Toyota ProAce Max impresses with its modern look, low weight, and high practicality. With an integrated rear roller, flexible configuration, and robust construction, it is ideal for demanding applications in trade and industry.
Frequently asked questions about the roof rack for Toyota ProAce Max
Is the rear roller included in the scope of delivery?
Yes, the continuous rear roller is integrated as standard.
For which vehicle lengths is the roof rack available?
It is available for L1 to L4 variants of the Toyota ProAce Max.
How long does installation take?
Installation usually takes between 35 and 45 minutes.
What material is the roof rack made of?
The roof rack is made of galvanized, black-coated aluminum.
