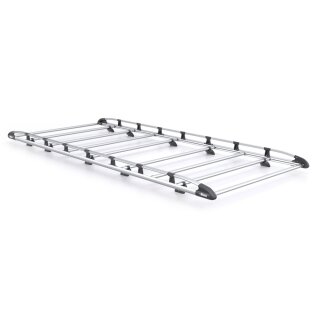

Aluminum roof rack for Maxus Deliver 9 & e-Deliver 9 (from 2020)
The aluminum roof rack for Maxus Deliver 9 and Maxus e-Deliver 9 from 2020 onwards is the professional solution for tradespeople, service fleets, and municipal operations. Thanks to its aerodynamically optimized design, the system is ideal for frequent highway driving, with significantly reduced wind noise and noticeably lower air resistance.
Product description – Roof rack for Maxus Deliver 9 & e-Deliver 9
The robust roof rack made of galvanized aluminum combines high stability with low weight. Weight plays a decisive role in range and efficiency, especially in the e-Deliver 9 – aluminum offers clear advantages over heavy steel constructions in this respect.
The specially shaped cross tubes reduce air turbulence and ensure a pleasantly quiet ride. At the same time, full load capacity for professional use is maintained. The rear rollers are included as standard and make it much easier to load long goods such as ladders, pipes, or profiles.
🚐 Vehicle sizes – Maxus Deliver 9 & e-Deliver 9 (from 2020)
| Designation |
Rear door(s) |
Wheelbase |
Overall length |
Vehicle height |
Roof rack size |
| L1H1 |
Wing doors |
3,000 mm |
5,180 mm |
2,385 mm |
3.0 m x 1.6 m |
| L2H2 |
Swing doors |
3,366 mm |
5,546 mm |
2,555 mm |
3.2 m x 1.6 m |
| L3H2 |
Swing doors |
3,760 mm |
5,940 mm |
2,535 mm |
3.2 m x 1.6 m |
| L3H3 |
Swing doors |
3,760 mm |
5,940 mm |
2,775 mm |
3.0 m x 1.6 m |
Note: For vehicle length, see vehicle registration document, item 18; for vehicle height, see item 20; for year of manufacture, see item 6 (applies to German registration documents).
Technical details & scope of delivery
-
Material: galvanized, corrosion-resistant aluminum
-
Installation height: approx. 24 cm from the top edge of the roof
-
Assembly time: approx. 35–45 minutes
-
Crash test: 20 g tested in accordance with ECE 17.07
-
Rear rollers: integrated across the entire width
-
Cross tubes: can be positioned freely along the guide rail
Installation on the Maxus Deliver 9
The rack is attached to the factory-installed mounting points on the vehicle roof. The screw connection points are located under the plastic covers. After pre-assembling the feet, the roof rack is securely mounted. Detailed instructions are available in the "Technical Details" section.
Application profile & comparison
Trades: Ideal for roofers, electricians, or HVAC companies that regularly transport ladders and pipes.
Service fleets: Particularly suitable for companies that spend a lot of time on the highway – the aerodynamics significantly reduce noise.
E-mobility: With the e-Deliver 9, the low weight ensures minimal range loss compared to heavy steel racks.
Aluminum vs. steel
Compared to traditional steel roof racks, aluminum offers significantly better corrosion resistance and lower weight. While steel can have advantages, especially with extreme point loads, aluminum impresses in everyday commercial use with its efficiency, rust resistance, and cost-effectiveness.
Optional accessories
Porte Tube Pro – transport tube: Aerodynamic tube system for long goods, lockable, crash-tested to 20 g, load capacity up to 50 kg.
Safe Clamp – Ladder clamp: Secures ladders up to 5× faster, TÜV GS tested, including locks.
LadderStow – Ladder holder: Ergonomic loading and unloading of up to 3-piece ladders.
Walkway / platform: For safe working on the roof rack, mounting material included.
Aluminum rear door ladder: Non-slip steps, lightweight and stable, including mounting hardware (only suitable for hinged doors).
FAQ – Maxus Deliver 9 & e-Deliver 9 roof rack
Is the roof rack also suitable for the electric e-Deliver 9?
Yes, the system is fully compatible with the Maxus e-Deliver 9. The aluminum construction keeps the additional weight to a minimum.
What is the maximum load capacity?
The maximum roof load is based on the vehicle manufacturer's specifications. Please refer to the manual for the permissible roof load.
Is drilling necessary for installation?
No, installation is carried out at the existing fixing points on the vehicle.
