The aluminum roof rack for the Mercedes-Benz Citan II (W420 series) from model year 2022 onwards has been specially developed for the current vehicle generation. With its aerodynamically optimized crossbars, the system is ideal for frequent drivers, tradespeople, and service companies who spend a lot of time on the highway. Compared to simple crossbar solutions, this roof rack offers greater stability, better load distribution, and a professional appearance.
Modern transport system for the new Citan generation
The new Citan platform places increased demands on fit and stability. The roof rack made of galvanized aluminum combines low weight with high corrosion resistance – a clear advantage over classic steel roof racks. Especially in commercial use, the lighter material permanently reduces the roof load.
The streamlined design noticeably minimizes wind noise and air resistance. This keeps the vehicle pleasantly quiet even at higher speeds – particularly important for daily field service trips.
The rear rollers are included as standard and run across the entire width of the roof rack. This makes it much easier to safely slide ladders, profiles, or pipes onto the rack. The crossbars can be flexibly positioned along the rail and individually adjusted.
🚐 Vehicle sizes – Mercedes-Benz Citan II (W420)
| Designation |
Rear door(s) |
Wheelbase |
Overall length |
Vehicle height |
Roof rack size |
| L1H1 |
Double doors |
2,716 mm |
4,486 mm |
1,864 mm |
2.0 m x 1.2 m |
| L2H1 |
Double doors |
3,100 mm |
4,910 mm |
1,864 mm |
2.4 m x 1.2 m |
Note: The vehicle length can be found in the vehicle registration document under point 18, the vehicle height under point 20, and the year of manufacture under point 6 (valid for German vehicle registration documents).
Technical characteristics & safety standards
-
Material: galvanized aluminum
-
Assembly time: approx. 35–45 minutes
-
Installation height: approx. 24 cm from the top edge of the roof
-
Certification: TÜV-tested
-
Crash test: 20 g tested in accordance with ECE 17.07
-
Crossbars: freely movable and adjustable
-
Rear rollers: fully integrated
Areas of application – Trade & service
The roof rack is ideal for:
- Electricians and installation companies transporting ladders
- Service and maintenance vehicles
- Commercial users who regularly transport materials
Compared to pure crossbar systems, the closed roof basket offers significantly more securing points and greater stability under point loads. Compared to heavy steel variants, aluminum scores points with its lower weight and better corrosion resistance.
Installation on the Mercedes Citan II
Installation is carried out at the factory-specified fixing points under the roof covers. After removing the plastic caps, the mounting feet are screwed in place and the roof rack is fitted. Detailed installation instructions are available in the "Technical Details" section.
Optional accessories

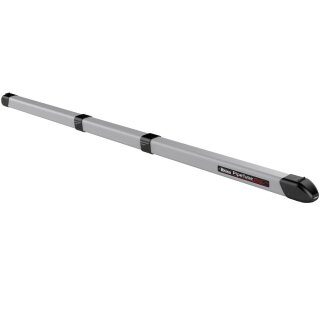

Pipe Tube Pro: Aerodynamic, lockable transport tube for long items with 20 g crash test certification.
Safe Clamp: Quick ladder attachment with integrated anti-theft device, TÜV GS tested.
LadderStow: Ergonomic ladder holder for safe and quick loading and unloading.
FAQ – Mercedes Citan II roof rack
Is the roof rack specially designed for the W420 series?
Yes, the system is designed to fit the Mercedes-Benz Citan II (W420) from model year 2022 onwards.
Are rear rollers included in the scope of delivery?
Yes, the rear rollers are integrated as standard and facilitate the safe loading of long items.
Does drilling have to be done for installation?
No, the system is attached to the factory-installed mounting points without any additional drilling.
