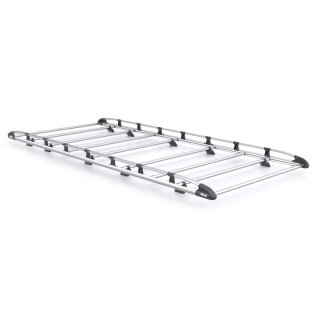

The aluminum roof rack for the Nissan NV300 (model years 2012–2021) and the Nissan Primastar from model year 2022 onwards offers a professional expansion of roof transport capacity for trades, commercial enterprises, and service fleets. Thanks to its aerodynamically shaped cross profiles, the system is particularly suitable for vehicles with high mileage and regular highway use.
Technical data & important product information
-
Construction: sturdy roof rack made of galvanized aluminum
-
Corrosion protection: permanently resistant to weathering
-
Installation height: approx. 24 cm from the top edge of the roof
-
Assembly time: approx. 35–45 minutes
-
Crash test: 20 g tested in accordance with ECE 17.07
-
Installation type: Vehicle-specific fixed point mounting – no drilling required
Scope of delivery:
✔ Aluminum roof rack system
✔ Continuous rear roller for convenient loading
✔ Mounting feet for original fixed points
✔ Complete mounting material
✔ Installation instructions
The integrated rear roller significantly facilitates the loading of ladders, pipes, and profile material and reduces material wear during loading and unloading.
Suitable for the following Nissan models
📏 Vehicle variants – Nissan NV300 & Primastar
| Designation |
Rear door(s) |
Wheelbase |
Overall length |
Vehicle height |
Roof rack size |
| L1H1 |
Wing doors |
3,098 mm |
5,080 mm |
1,971 mm |
2.8 m x 1.6 m |
| L1H1 |
Tailgate |
3,098 mm |
5,080 mm |
1,971 mm |
2.6 m x 1.6 m |
| L1H2 |
Swing doors |
3,098 mm |
5,080 mm |
2,498 mm |
2.2 m x 1.4 m |
| L2H1 |
Tailgate |
3,498 mm |
5,480 mm |
1,971 mm |
3.0 m x 1.6 m |
| L2H1 |
Swing doors |
3,498 mm |
5,480 mm |
1,971 mm |
3.2 m x 1.6 m |
| L2H2 |
Swing doors |
3,498 mm |
5,480 mm |
2,498 mm |
2.6 m x 1.4 m |
Note: You will find the vehicle length in the vehicle registration document under point 18, the vehicle height under point 20, and the year of manufacture under point 6.
Installation – stable & vehicle-specific
The rack is attached using the roof mounting points provided by the manufacturer. The mounting points are located under the plastic covers. This creates a secure connection without the need for additional drilling or universal clamp holders.
Optionally expandable for professional requirements
-

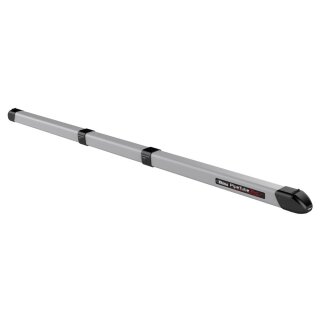

Porte Tube Pro – lockable transport tube for long items
-

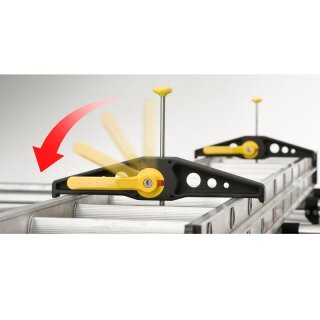

Safe Clamp – tested ladder clamp with 20 g test
-

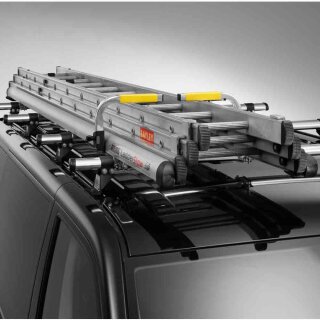

LadderStow – ergonomic ladder holder
-

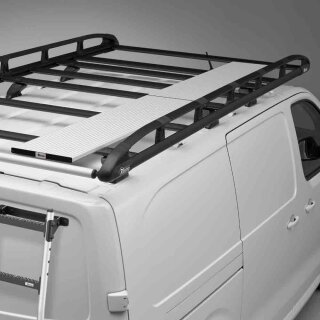

Platform/walking plate – makes working on the roof easier
Areas of application – from craft businesses to service fleets
The Nissan NV300 and the new Primastar are often used as universal transporters in the commercial sector. This roof rack system is particularly suitable for:
- Installation companies
- Electrical and plumbing
- Facility management
- Mobile maintenance teams
- Commercial fleets with long-distance use
Aerodynamic advantage in daily use
Compared to angular steel constructions, the flow-optimized design improves noise performance at higher speeds. This can significantly increase driving comfort, especially during regular highway trips.
Material comparison – aluminum vs. classic steel beams
⚖️ Comparison of roof rack systems
| Evaluation point |
Aluminum roof basket |
Steel crossbar |
| Weight load on roof |
Lower – more payload possible |
Higher dead weight |
| Susceptibility to rust |
Very low |
Depends on coating |
| Long-term use |
Very durable |
High maintenance |
| Appearance |
Modern & high-quality |
Functional |
Roof basket system vs. individual crossbars
While individual crossbars are mainly used for roof boxes, a closed roof basket offers significantly more flexibility for commercial use:
- Better load distribution for heavy materials
- More fastening options
- More stable construction for ladders and profiles
- Compatible with platform solutions
Why choose Rhino instead of cheaper universal roof racks?
- Vehicle-specific fixed point mounting
- 20 g crash test according to ECE 17.07
- Rear roller integrated as standard
- Modular expandability
- Designed for continuous commercial use
Conclusion
The aluminum roof rack for the Nissan NV300 and Nissan Primastar offers a durable, tested, and aerodynamically optimized solution for professional users. With high-quality materials, tested safety, and modular expandable components, the system is ideal for demanding applications in the trade and service sectors.
