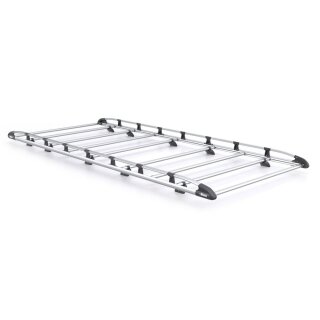

The aluminum roof rack for the VW Caddy 5 (from model year 2021) and the Caddy Maxi offers a professional expansion of transport volume for trades, services, and commercial use. Thanks to its aerodynamic design, the system is ideal for frequent highway driving and significantly reduces wind noise compared to many conventional roof rack systems.
Suitable for VW Caddy 5 & Caddy Maxi – precisely tailored variants
The roof rack is precisely tailored to the vehicle geometry of the VW Caddy 5 and is available in different versions for different wheelbases and rear variants.
🚐 Vehicle sizes – VW Caddy 5 & Caddy Maxi (KammRack aluminum roof rack)
| Designation |
Rear door(s) |
Wheelbase |
Total length |
Vehicle height |
Roof rack size |
| L1H1 |
Tailgate |
2,755 mm |
4,500 mm |
1,819 mm |
2.0 m x 1.25 m |
| L1H1 |
Swing doors |
2,755 mm |
4,500 mm |
1,819 mm |
2.2 m x 1.25 m |
| L2H1 – Maxi |
Tailgate |
2,970 mm |
4,853 mm |
1,819 mm |
2.2 m x 1.25 m |
| L2H1 – Maxi |
Swing doors |
2,970 mm |
4,853 mm |
1,819 mm |
2.4 m x 1.25 m |
Note: Vehicle length (item 18), vehicle height (item 20), and year of manufacture (item 6) can be found in the vehicle registration document. Applies to German registration documents.
Technical highlights & scope of delivery
The streamlined crossbars noticeably reduce wind noise and air resistance. This makes the roof rack significantly quieter in everyday use than many angular standard roof racks.
The rear rollers are included in the scope of delivery. They extend across the entire width of the roof rack and make it easier to safely load ladders, pipes, or sheet material.
- Material: galvanized, corrosion-resistant aluminum
- Crossbars can be positioned freely along the rail
- Assembly time: approx. 35–45 minutes
- TÜV-tested & 20 g crash-tested according to ECE 17.07
- Installation height: approx. 24 cm from the top edge of the roof
- Suitable for tailgates and wing doors
Installation on the VW Caddy 5
The basket is attached to the factory-fitted fixing points in the vehicle roof. The mounting points to which the pre-assembled feet are screwed are located under the plastic covers. The roof basket is then aligned and secured. Detailed instructions are available under "Technical details."
Optional accessories for professional use
The roof rack can be adapted to suit different areas of application:
Pipe Tube Pro – Transport tube
Aerodynamic tube system for long items such as copper pipes or installation materials. Lockable, crash-tested to 20 g and can be mounted without drilling.
- Installation time approx. 15 minutes
- Load capacity up to 50 kg
- Transport of up to 50 pipes (Ø 15 mm)
Safe Clamp – Ladder clamp
Up to 5× faster than conventional fasteners. TÜV GS tested, including locks for theft protection.
LadderStow – Ladder holder
Ergonomic solution for safely loading and unloading up to three ladder sections.
FAQ – VW Caddy 5 & Caddy Maxi aluminum roof rack
Does the roof rack fit both the VW Caddy 5 and the Caddy Maxi?
Yes. The roof rack is designed for the VW Caddy 5 from model year 2021 onwards and for the Caddy Maxi. It is important to select the appropriate version (L1 or L2/Maxi) according to the wheelbase and roof rack size.
Are rear rollers really included in the scope of delivery?
Yes, the rear rollers are included as standard. They run across the entire width of the rack and make it noticeably easier to load long items such as ladders, pipes, or profiles.
How is the roof rack mounted on the Caddy 5?
It is mounted at the factory-installed fixing points in the roof. The mounting points are located under the plastic covers. The feet are screwed in place there, then the roof rack is aligned and tightened.
Can I move the crossbars/crossbars?
Yes. The crossbars can be positioned flexibly along the rail. This allows the roof rack to be optimally adapted to different types of cargo (e.g., ladders, panels, pipes, or boxes).
Is the roof rack suitable for highway driving – how loud is it?
The aerodynamically shaped crossbars make the roof rack particularly suitable for frequent highway driving. Compared to angular standard racks, there is usually less wind noise and a more comfortable driving experience.
Which accessories are useful for trades and service work?
Three extensions are particularly popular for everyday professional use: Pipe Tube Pro (long goods transport tube), Safe Clamp (quick ladder clamp with anti-theft device), and LadderStow (ergonomic ladder holder). These allow the roof rack to be expanded specifically for the area of application.
