The Fiat Scudo L2 from 2022 onwards offers plenty of scope for creating a well-organised professional cargo area. Shelving, tool cabinets and work equipment can have their permanent place while still leaving enough open floor space for machines, transport containers or changing loads.
A vehicle-specific cargo floor provides an important foundation for this type of conversion. The aluminium chequer plate cargo floor combines birch plywood as the supporting material with a robust aluminium five-bar chequer plate surface. This creates a practical working surface for everyday commercial use while protecting the original vehicle floor from direct contact with tools, materials and other cargo.
Does this aluminium chequer plate floor fit my Fiat Scudo L2?
#break#
In short: This cargo floor is designed for the Fiat Scudo L2H1 from 2022 onwards with a wheelbase of 3,275 mm, an overall length of 4,959 mm and a cargo area length of 2,512 mm. It is available in 9 mm or 12 mm thickness. The 9 mm version can optionally be supplied with recessed Airline Rails. The floor is not suitable for passenger/combi vehicles with seat rails or double-cab versions.
Fiat Scudo L2 – more options for an organised cargo area
In commercial use, a van often needs to perform two different jobs at the same time. Part of the cargo area may be permanently occupied by tools, spare parts or vehicle equipment, while the remaining space needs to stay flexible for different transport requirements.
With a cargo area length of 2,512 mm, the Scudo L2 provides a useful basis for combining these two requirements. Shelving systems or tool cabinets can be installed while retaining open floor space for equipment and changing loads, so every new job does not necessarily require the entire cargo area to be reorganised.
The aluminium chequer plate floor provides a continuous upper working surface for this purpose. In a van that is used every day, the floor does much more than simply support the load: it is regularly walked on, loaded and unloaded, and comes into contact with toolboxes, machines and transport containers.
Fiat Scudo L2 vehicle dimensions from 2022
Before ordering, check the vehicle version against the dimensions below. This cargo floor is manufactured specifically for the L2H1 version of the Fiat Scudo from 2022 onwards.
Compatible vehicle configuration – Fiat Scudo L2H1
| Version |
Wheelbase |
Overall length |
Cargo area length |
Cargo area height |
Vehicle height |
| L2H1 |
3,275 mm |
4,959 mm |
2,512 mm |
1,397 mm |
1,905 mm |
Note: The vehicle registration document can also be used to help identify the correct version. Check the registered vehicle dimensions and relevant vehicle information before ordering.
Combining fixed vehicle equipment with flexible cargo space
Not every part of the Scudo L2 cargo area needs to be permanently occupied by shelving or cabinets. For many commercial vehicles, the most practical solution is a combination of fixed equipment and flexible loading space.
Typical applications include:
-
Trade vehicles with shelving for tools and additional floor space for materials
-
Installation vehicles carrying machines, tool cases and consumable materials
-
Service vehicles with spare parts and permanently installed vehicle equipment
-
Delivery and courier vans carrying changing transport containers or other cargo
-
Mobile workshops with tool cabinets and an accessible working area
A continuous, vehicle-specific cargo floor creates a common foundation for these different areas. The cargo space can then be organised around the actual working processes and transport requirements of the vehicle.

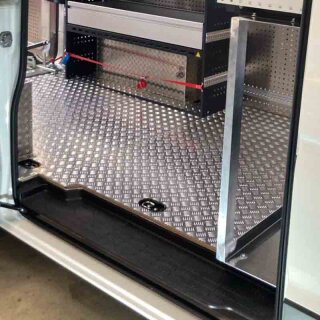

Birch plywood combined with aluminium five-bar chequer plate
The cargo floor combines birch plywood as the supporting base with an aluminium five-bar chequer plate surface.
The aluminium forms the upper working and loading surface. Tools, machines, transport boxes and other cargo therefore rest on the aluminium rather than directly on the underlying wooden board.
The contours of the floor are CNC-machined specifically for the vehicle and shaped to fit the cargo area of the Fiat Scudo L2.
When does an aluminium chequer plate floor make sense in the Scudo L2?
Both a conventional wooden cargo floor and an aluminium chequer plate floor provide a usable floor surface inside the van. The main difference is the upper surface – the part that comes into direct contact with people, tools and cargo during everyday use.
Comparison: conventional wooden floor vs. aluminium chequer plate floor
| Feature |
Conventional wooden floor |
Aluminium chequer plate floor |
| Upper working surface |
Wood or coated wooden surface |
Aluminium five-bar chequer plate |
| Surface structure |
Smooth or textured depending on version |
Distinctive five-bar pattern |
| Contact with cargo |
Cargo rests on the wooden surface |
Aluminium forms the upper working surface |
| Typical application |
General cargo area conversions |
Regularly used work and transport vehicles |
| Appearance |
Traditional van floor appearance |
Professional technical aluminium finish |
9 mm or 12 mm – which version suits the Scudo L2?
The aluminium chequer plate cargo floor for the Fiat Scudo L2 is available in 9 mm or 12 mm thickness. An important factor when choosing between the two versions is whether Airline Rails are to be integrated directly into the floor.
Cargo floor versions for the Fiat Scudo L2
| Version |
Aluminium chequer plate |
Optional Airline Rails |
| 9 mm |
Yes |
Yes |
| 12 mm |
Yes |
No |
If Airline Rails are to be integrated directly into the cargo floor, choose the 9 mm version.
Airline Rails for a flexibly used Scudo L2
If part of the cargo area is permanently fitted out while another section is used for changing loads, additional attachment points can be particularly useful. The 9 mm version can therefore optionally be supplied with recessed Airline Rails.
The rails are recessed across the direction of travel and bonded into the cargo floor. Combined with suitable Airline Rail accessories such as fittings or lashing straps, they provide additional attachment points for different transport requirements.
This allows the open area of the Scudo to be used for machines and materials on one job and for toolboxes or transport containers on another. Suitable attachment points can be selected according to the cargo being carried.
Important:
Recessed Airline Rails are available exclusively with the 9 mm version of the cargo floor.
Installing the cargo floor in the Fiat Scudo L2
The individual floor sections are positioned precisely inside the vehicle and screwed together. This creates a continuous floor surface shaped to the contours of the cargo area.
The supplied recessed lashing-point cups are fitted into the prepared cut-outs and secured using the vehicle's original lashing points.
Before final installation, it is advisable to position all floor sections inside the cargo area first and check that they are correctly aligned.
Technical specifications of the Fiat Scudo L2 cargo floor
Fiat Scudo L2 aluminium chequer plate floor – product specifications
| Feature |
Specification |
| Vehicle |
Fiat Scudo L2H1 |
| Model year |
From 2022 onwards |
| Base material |
Birch plywood |
| Floor thickness |
9 mm or 12 mm |
| Surface |
Aluminium five-bar chequer plate |
| Manufacturing |
CNC-machined and vehicle-specific |
| Lashing-point cups |
Included |
| Airline Rails |
Optional with 9 mm version |
| Vehicle type |
Panel van |
Please check before ordering:
This cargo floor is not suitable for passenger/combi vehicles with seat rails or double-cab versions. It is designed exclusively for the corresponding panel van.
Practical tip: Define the working areas before fitting out the van
With the Scudo L2, it makes sense to divide the cargo area into different zones before installing the vehicle equipment. Where will permanent shelving or cabinets be positioned? Where will machines regularly be carried? And which part of the floor should remain as flexible as possible?
If Airline Rails are also required, their future use can be included in this planning. This helps keep useful attachment points accessible instead of discovering later that the perfect position is now hidden underneath a tool cabinet. A few minutes of planning before the conversion can save a surprising amount of dismantling and reassembly later. 😄
Frequently asked questions about the Fiat Scudo L2 aluminium chequer plate floor
Which Fiat Scudo is this chequer plate floor designed for?
The floor is designed for the Fiat Scudo L2H1 from 2022 onwards with a wheelbase of 3,275 mm, an overall length of 4,959 mm and a cargo area length of 2,512 mm.
Which floor thicknesses are available for the Scudo L2?
The aluminium chequer plate cargo floor is available in 9 mm and 12 mm.
Which version do I need for recessed Airline Rails?
The 9 mm version is required if recessed Airline Rails are to be integrated into the cargo floor. This option is not available with the 12 mm version.
How are the Airline Rails positioned in the Scudo L2 floor?
The optional Airline Rails are recessed across the direction of travel and bonded into the cargo floor.
Are the recessed lashing-point cups included?
Yes. The required lashing-point cups are included and are secured using the vehicle's original lashing points.
Can the floor be used together with vehicle shelving or other equipment?
The cargo floor can be used as the basis for a commercial cargo area conversion. The specific installation and mounting of shelving, cabinets or other vehicle equipment should be planned according to the individual conversion.
Does the floor fit a Fiat Scudo double cab?
No. The floor is designed exclusively for the corresponding panel van and is not suitable for passenger/combi vehicles with seat rails or double-cab versions.
Making effective use of the additional space in the Fiat Scudo L2
The Fiat Scudo L2 from 2022 onwards provides enough room to combine permanently installed vehicle equipment with flexible loading space. For trade, service and installation vehicles in particular, this allows the cargo area to be organised around different working routines and transport requirements.
The vehicle-specific aluminium chequer plate cargo floor provides a continuous foundation made from birch plywood with an aluminium five-bar chequer plate surface. Its CNC-machined contours are shaped specifically for the cargo area of the Scudo L2.
When the 9 mm version is ordered with recessed Airline Rails, additional flexible attachment points are available for changing transport tasks. This makes it possible to organise the available cargo area around both permanent equipment and the loads carried from one job to the next.
