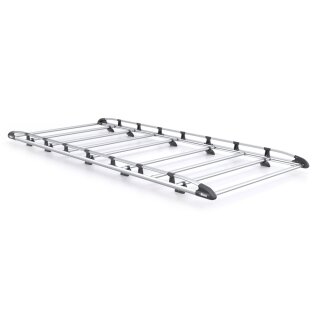

The Rhino KammRack aluminum roof rack for VW Caddy III and IV (model years 2010–2020) combines aerodynamic efficiency with tested safety and durable aluminum construction. Developed for tradespeople, service vehicles, and commercial use, this roof rack for VW Caddy impresses with reduced wind noise, flexible expandability, and 20 g crash testing in accordance with ECE 17.07.
What makes the roof rack for VW Caddy stand out?
The Rhino aluminum roof rack is precisely tailored to the roof structure of the VW Caddy. Its aerodynamically shaped crossbars minimize air resistance and ensure quiet running on the highway. Installation is carried out using the factory fixing points – no drilling required.
Aluminum roof rack for VW Caddy – quiet & professional
Efficiency plays a major role, especially in everyday craftsmanship. The Rhino roof rack for VW Caddy significantly reduces wind noise compared to conventional steel racks. The rear rollers included in the scope of delivery across the entire roof width make it much easier to load ladders and long items.
All crossbars can be flexibly positioned along the guide rails – ideal for individual transport requirements.
Vehicle variants & roof basket sizes – VW Caddy III & IV
The roof rack is suitable for the following vehicle variants:
🚐 VW Caddy & Caddy Maxi (2010–2020)
| Designation |
Rear door(s) |
Wheelbase |
Overall length |
Vehicle height |
Roof rack size |
| L1H1 |
Tailgate |
2,682 mm |
4,408 mm |
1,823 mm |
2.0 m × 1.25 m |
| L1H1 |
Swing doors |
2,682 mm |
4,408 mm |
1,823 mm |
2.2 m × 1.25 m |
| L2H1 – Maxi |
Tailgate |
3,002 mm |
4,878 mm |
1,823 mm |
2.4 m × 1.25 m |
| L2H1 – Maxi |
Swing doors |
3,002 mm |
4,878 mm |
1,823 mm |
2.6 m × 1.25 m |
💡 Note: Vehicle length under point 18, vehicle height under point 20, year of manufacture under point 6 in the vehicle registration document.
Comparison: VW Caddy vs. VW Caddy Maxi
The choice between Caddy and Caddy Maxi has a significant impact on the roof rack length:
VW Caddy (L1):
• shorter wheelbase (2,682 mm)
• compact roof
area• Roof basket 2.0 m – 2.2 m
VW Caddy Maxi (L2):
• Extended wheelbase (3,002 mm)
• Larger roof
area• Roof basket 2.4 m – 2.6 m•
Ideal for longer ladders or pipes
Important: Roof racks are not interchangeable between the Caddy and Caddy Maxi.
Installation & tested safety
Installation is carried out using the factory-fitted fixing points under the roof caps. The mounting feet are screwed in place and connected to the aluminum frame. The installation height is approx. 24 cm. Installation takes 35–45 minutes.
The roof rack is certified according to ECE 17.07 with a 20 g crash test.
Optional accessories for the VW Caddy roof rack
Pipe Tube Pro: Lockable transport tube (50 kg load capacity).
SafeClamp: 5× faster than standard clamps, 20 g tested.
LadderStow: Ergonomic ladder holder made of anodized aluminum.
Conclusion – The professional solution for VW Caddy tradespeople
The Rhino KammRack roof rack for VW Caddy & Caddy Maxi offers maximum functionality with low weight. Quiet, stable, modularly expandable, and crash-tested – developed for daily use in the trades.
Frequently asked questions about the VW Caddy roof rack
Are the roof racks for Caddy and Caddy Maxi identical?
No, different roof lengths require different roof rack sizes.
Does drilling have to be done?
No, installation is carried out using factory-fitted fixing points.
Has the roof rack been crash tested?
Yes, tested in accordance with ECE 17.07 with 20 g.
Are accessories compatible?
Yes, with transport tubes, ladder clamps, and ladder holders from Rhino.
