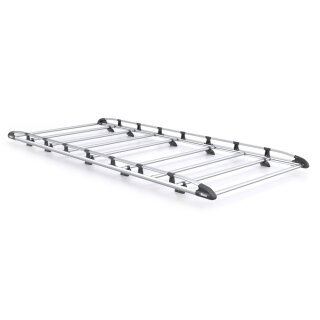

The Rhino KammRack aluminum roof rack for VW T5, VW T6, and VW T6.1 was specially developed for professional use in the trades, construction, service, and camping sectors. It combines aerodynamic efficiency with high stability, modular expandability, and tested safety in accordance with ECE 17.07 (20 g crash test).
Why is this roof rack ideal for VW T5, T6 & T6.1?
The aerodynamically optimized crossbars significantly reduce wind noise compared to classic steel roof racks. Especially when driving frequently on the highway, the flow-optimized design ensures smooth handling and lower air resistance.
The rear rollers included in the scope of delivery across the entire roof width make it much easier to safely load ladders, pipes, or building materials. All crossbars can be flexibly positioned along the guide rails – perfect for individual transport requirements.
Vehicle variants & roof basket sizes
The aluminum roof rack is available for the following vehicle sizes:
🚐 VW T5 / T6 / T6.1 – Roof basket dimensions
| Designation |
Rear door(s) |
Wheelbase |
Overall length |
Vehicle height |
Roof rack size |
| L1H1 |
Tailgate |
3,000 mm |
4,904 mm |
1,990 mm |
2.8 m × 1.4 m |
| L1H1 |
Swing doors |
3,000 mm |
4,904 mm |
1,990 mm |
3.0 m × 1.4 m |
| L2H1 |
Tailgate |
3,400 mm |
5,304 mm |
1,990 mm |
3.2 m × 1.4 m |
| L2H1 |
Swing doors |
3,400 mm |
5,304 mm |
1,990 mm |
3.2 m × 1.4 m |
Note: You will find the vehicle length under item 18, the vehicle height under item 20, and the year of manufacture under item 6 in the vehicle registration document.
Comparison: VW T5 vs. T6 vs. T6.1
The T5, T6, and T6.1 generations share a similar roof geometry, but differ in technical details:
VW T5 (from 2003):
• classic transporter
platform• robust & proven in the trade
VW T6 (from 2015):
• modernized technology•
improved assistance systems
VW T6.1 (from 2019):
• digital cockpit
architecture• advanced electronics•
same roof base as T6
The Rhino roof rack is designed to fit all three generations and uses the factory OEM fixing points or factory-fitted C-rails – without additional drilling.
Installation & tested safety
Installation is carried out using the original fixing points under the plastic covers on the vehicle roof or on existing C-rails. First, the mounting feet are screwed to the roof rack, then the rack is mounted on the vehicle.
The installation height is approx. 24 cm from the top edge of the roof. Installation takes 35–45 minutes.
Safety:
• 20 g crash-tested according to ECE 17.
07• Corrosion-resistant, galvanized aluminum
Optional accessories for maximum flexibility
PorteTube Pro: Lockable transport tube (50 kg load capacity).
SafeClamp ladder clamp: 5× faster than standard clamps, 20 g tested.
LadderStow: Ergonomic ladder holding system.
Running platform: Non-slip work surface on the roof.
Conclusion – The professional roof rack for the VW Transporter
The Rhino KammRack aluminum roof rack for VW T5, T6, and T6.1 is the professional solution for maximum transport capacity. Quiet, stable, modularly expandable, and safety-tested – ideal for daily use in trade or commerce.
Frequently asked questions about the VW T5 / T6 roof rack
Is the roof rack for T5, T6, and T6.1 identical?
Yes, the roof geometry is compatible, so the same type of rack can be used.
Does drilling have to be done?
No, installation is carried out using factory-fitted fixing points or factory-fitted C-rails.
Has the roof rack been crash tested?
Yes, tested according to ECE 17.07 with 20 g.
How high is the roof rack?
Approx. 24 cm from the top edge of the roof.
