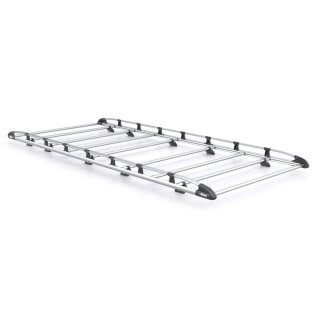

The aluminum roof rack for Iveco Daily models built in 2014 or later was developed specifically for professional use in the trades, construction, and service sectors. With its aerodynamically shaped crossbars, the system is ideal for vehicles that regularly travel on highways and long distances. The result: reduced wind noise, lower air resistance, and a more comfortable ride—even at high speeds.
Product description – Iveco Daily aluminum roof rack
Made of galvanized, corrosion-resistant aluminum, the roof rack combines high stability with a comparatively low weight. A lightweight but robust roof solution is particularly important for the Iveco Daily, which is often operated with a high payload.
Rear rollers are included in the scope of delivery and extend across the entire width of the roof rack. This allows ladders, pipes, profiles, or panels to be loaded with minimal damage to the material. The crossbars can be flexibly positioned along the mounting rails and can be precisely adjusted to the respective cargo.
The roof rack is TÜV-approved and crash-tested to 20 g in accordance with ECE 17.07. Installation takes around 35–45 minutes. The installation height is approx. 24 cm from the top edge of the roof.
Vehicle variants & suitable roof basket sizes
The aluminum roof rack is suitable for the following Iveco Daily variants from model year 2014 onwards:
🚐 Vehicle sizes – Iveco Daily (from 2014)
| Designation |
Rear door(s) |
Wheelbase |
Overall length |
Vehicle height |
Roof rack size |
| L1H1 |
Wing doors |
3,000 mm |
5,149 mm |
2,280 mm |
3.2 m x 1.6 m |
| L2H1 |
Swing doors |
3,520 mm |
5,669 mm |
2,280 mm |
3.8 m x 1.6 m |
| L2H2 |
Swing doors |
3,520 mm |
5,669 mm |
2,660 mm |
3.2 m x 1.6 m |
| L3H2 |
Swing doors |
3,520 mm |
6,047 mm |
2,660 mm |
3.6 m x 1.6 m |
| L3H3 |
Swing doors |
3,520 mm |
6,047 mm |
2,860 mm |
3.2 m x 1.6 m |
Note: Vehicle length (point 18), vehicle height (point 20), and year of manufacture (point 6) can be found in the vehicle registration document (applies to German registration documents).
Mounting at the factory-installed mounting points
Installation is carried out at the fixing points on the vehicle roof specified by the manufacturer. The fixing points are located under the plastic covers. After pre-assembling the feet, the roof rack is securely screwed in place. Detailed installation instructions are available in the "Technical Details" section.
Advantages in everyday use
- Lightweight but sturdy aluminum roof basket
- Aerodynamic crossbars for reduced wind noise
- Includes rear rollers across the entire width
- Flexibly positionable crossbars
- TÜV-approved & crash-tested at 20 g
- Significant increase in transport volume
- Suitable for hinged doors
Optional accessories for maximum efficiency
A wide range of professional accessories is available for the Iveco Daily roof rack:
Porte Tube Pro – transport tube
Ideal for long materials such as pipes or rods. Lockable steel front wall, aerodynamic design, and 20 g crash certification.
- Installation in approx. 15 minutes
- Load capacity up to 50 kg
- No drilling required
Safe Clamp – Ladder clamp
Up to 5× faster than conventional ladder fastenings. TÜV GS tested, including anti-theft device.
LadderStow – Ladder holder
Ergonomic loading and unloading of up to 3-piece ladders. Made of anodized aluminum.
Walkway / platform
Makes working and loading on the roof rack easier. Includes mounting hardware.
Conclusion – Professional roof solution for the Iveco Daily
The aluminum roof rack for Iveco Daily from 2014 onwards is a durable, aerodynamic, and well-designed transport solution for commercial users. The combination of low weight, high stability, and extensive accessories makes the system ideal for daily professional use.
