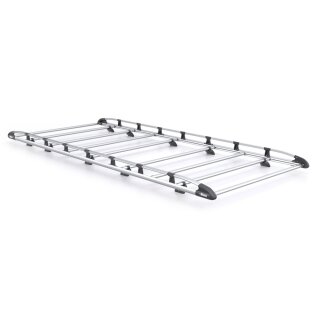

The aluminum roof rack for the Nissan NV400 (model years 2010–2021) and the Nissan Interstar (model years 2021–2023) is a professional transport solution for tradespeople, construction workers, and service providers. The aerodynamically shaped cross profiles make the system particularly suitable for longer highway journeys, effectively reducing wind noise and air resistance.
The robust yet lightweight aluminum construction ensures high stability with low dead weight – a decisive advantage in daily commercial use.
Compatible vehicle variants – Nissan NV400 & Interstar
The roof rack is vehicle-specific and available for the following variants:
🚐 Vehicle sizes – Nissan NV400 & Interstar
| Designation |
Drive type |
Wheelbase |
Overall length |
Vehicle height |
Roof rack size |
| L1H1 |
Front-wheel drive |
3,182 mm |
5,048 mm |
2,307 mm |
3.0 m x 1.6 m |
| L1H2 |
Front-wheel drive |
3,182 mm |
5,048 mm |
2,500 mm |
3.0 m x 1.6 m |
| L2H2 |
Front-wheel drive |
3,682 mm |
5,548 mm |
2,500 mm |
3.2 m x 1.6 m |
| L3H2 |
Rear-wheel drive |
3,682 mm |
6,198 mm |
2,527 mm |
3.8 m x 1.6 m |
| L3H2 |
Front-wheel drive |
4,332 mm |
6,198 mm |
2,488 mm |
3.8 m x 1.6 m |
| L4H2 |
Rear-wheel drive |
4,332 mm |
6,848 mm |
2,557 mm |
4.4 m x 1.6 m |
Note: For vehicle length, see vehicle registration document, item 18; for vehicle height, see item 20; for year of manufacture, see item 6 (German registration).
Technical features & advantages
The Rhino aluminum roof rack impresses with its durable construction made of galvanized aluminum. The material is corrosion-resistant, torsion-resistant, and designed for professional continuous use.
-
Includes rear roller across the entire width – standard
- Crossbars can be flexibly positioned along the guide rail
- 20 g crash tested according to ECE 17.07
- Installation height approx. 24 cm from the top edge of the roof
- Installation time approx. 35–45 minutes
The integrated rear roller makes it much easier to safely slide ladders, profiles, or sheet material into place – a clear advantage over simple crossbar systems.
Installation on the vehicle
Installation is carried out at the fixing points provided by the manufacturer in the roof area. After removing the plastic covers, the pre-assembled mounting feet are screwed directly into place. No additional drilling is required.
Detailed installation instructions are available in the "Technical Details" section.
Optional accessories for maximum flexibility
Porte Tube Pro – Transport tube
Aerodynamic aluminum transport tube for long items. Lockable steel end wall, tested according to 20 g crash test and ideal for copper pipes or installation material.
SafeClamp ladder clamp
Up to five times faster fixing compared to conventional systems. TÜV GS tested and includes anti-theft device.
LadderStow ladder holder
Ergonomic loading and unloading of ladders. Made of anodized aluminum.
Walkway / platform
Makes it easier to work and walk safely on the roof rack during loading.
Aluminum rear door ladder
Lightweight, stable, and equipped with non-slip rungs. Only suitable for vehicles with wing doors.
Conclusion
The aluminum roof rack for the Nissan NV400 and Nissan Interstar is a robust, aerodynamic, and tested transport solution for professional users. With modular expansion options, tested safety, and durable aluminum construction, the system is ideal for everyday use in the trades.
