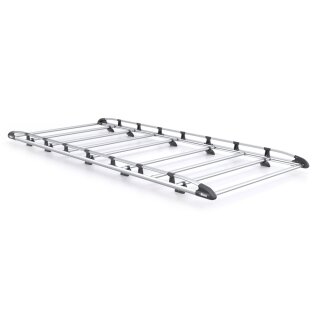

The Rhino KammRack aluminum roof rack for Renault Master III (model years 2010–2023) combines aerodynamic efficiency, high stability, and tested safety in a professional carrier system. Developed for continuous commercial use, this roof rack for Renault Master impresses with reduced wind noise, durable aluminum construction, and 20 g crash testing in accordance with ECE 17.07.
What makes the roof rack for Renault Master III stand out?
The Rhino aluminum roof rack was specially developed for the body structure of the Renault Master III. Its aerodynamically shaped crossbars reduce air resistance and minimize wind noise when driving on the highway. Installation is carried out using factory-fitted fixing points – no drilling required.
Aluminum roof rack for Renault Master 2010–2023
The Rhino roof rack for Renault Master III is available for numerous vehicle variants and offers maximum flexibility for professional use. The crossbars can be individually positioned along the guide rails. The scope of delivery includes rear rollers across the entire roof width, which make safe loading considerably easier.
Vehicle variants & roof rack sizes – Renault Master III
Below are the suitable variants for the Renault Master III (2010–2023):
🚐 Vehicle variants – Renault Master III (2010–2023)
| Designation |
Drive type |
Wheelbase |
Overall length |
Vehicle height |
Roof rack size |
| L1H1 |
Front-wheel drive |
3,182 mm |
5,048 mm |
2,307 mm |
3.0 m × 1.6 m |
| L1H2 |
Front-wheel drive |
3,182 mm |
5,048 mm |
2,500 mm |
3.0 m × 1.6 m |
| L2H2 |
Front-wheel drive |
3,682 mm |
5,548 mm |
2,500 mm |
3.2 m × 1.6 m |
| L3H2 |
Rear-wheel drive |
3,682 mm |
6,198 mm |
2,527 mm |
3.8 m × 1.6 m |
| L3H2 |
Front-wheel drive |
4,332 mm |
6,198 mm |
2,488 mm |
3.8 m × 1.6 m |
| L4H2 |
Rear-wheel drive |
4,332 mm |
6,848 mm |
2,557 mm |
4.4 m × 1.6 m |
💡 Note: Vehicle length under point 18, vehicle height under point 20, year of manufacture under point 6 in the vehicle registration document.
Installation & tested safety
Installation is carried out using the factory-fitted fixing points under the roof caps. The mounting feet are screwed in place and connected to the aluminum frame. The installation height is approx. 24 cm from the top edge of the roof. Installation takes 35–45 minutes.
The roof rack is certified according to ECE 17.07 with a 20 g crash test – for maximum safety in commercial use.
Comparison: Renault Master III vs. Renault Master IV roof rack
The roof structure of the Master was modified with the 2024 model change. This is why the carrier systems differ in design:
Master III (2010–2023):
• Greater variety of variants (L1–L4)
• Front- and rear-wheel
drive versions• Proven fixed
point system• Compatible with existing accessory portfolio
Master IV (from 2024):
• New roof
geometry• Optimized aerodynamic adjustment•
Changed fixed point
positions• New rack lengths L2H2 & L3H2
Important: Roof racks are not compatible between Master III and Master IV. Please be sure to note the year of manufacture.
Optional accessories for maximum functionality
Porte Tube Pro: Lockable transport tube for long items (50 kg load capacity).
SafeClamp: 5× faster than standard clamps, GS – 20 g tested.
LadderStow: Ergonomic ladder holder system.
Running platform: Safe working on the vehicle roof.
Rear door ladder: Non-slip, stable, only for wing doors.
Conclusion – Proven professional solution for Renault Master III
The Rhino KammRack roof rack for Renault Master III is the ideal solution for trades, construction, logistics, and professional transport tasks. Quiet in operation, modularly expandable, and safety-certified – developed for everyday use.
Frequently asked questions about the Renault Master III roof rack
Is the roof rack compatible with Master IV?
No, due to different roof geometries, the systems are not compatible.
Does drilling have to be done?
No, installation is carried out using factory-set fixing points.
Which variants are supported?
L1H1, L1H2, L2H2, L3H2, and L4H2 – depending on the drive type.
Has the roof rack been crash tested?
Yes, tested according to ECE 17.07 with 20 g.
