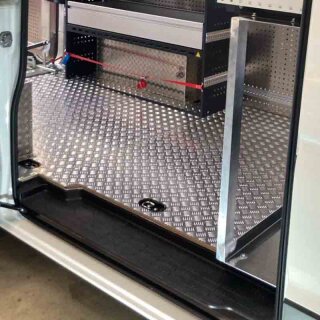

An aluminum checker plate transporter floor for the Ford Transit Custom L2 from model year 2024 onwards provides lasting protection for the cargo area against wear, moisture, and mechanical stress. The floor is subject to heavy wear and tear in daily use, especially in vehicles with a long wheelbase—for example, when transporting tools, machines, or heavy materials.
📌 Quick overview – aluminum van floor for Ford Transit Custom L2
- Precisely fitting transporter floor for Ford Transit Custom L2 from 2024
- Non-slip aluminum checker plate surface
- 9 mm or 12 mm thick birch plywood
- CNC-milled for a perfect fit
- Ideal for trades, service, and fleet vehicles
Van floor for Ford Transit Custom L2 – optimal cargo area protection
The aluminum checker plate van floor for the Ford Transit Custom with long wheelbase is CNC-milled and precisely adapted to the contours of the cargo area. This creates a stable and resilient loading area that reliably protects the original floor from damage.
The carrier plate is made of high-quality birch plywood, onto which a 1.5–2.0 mm thick aluminum checker plate is applied. The quintet structure ensures a particularly slip-resistant surface and increases safety in everyday work.
The floor is specially designed for the Ford Transit Custom L2 with a long wheelbase and covers the entire cargo area precisely.
📏 Vehicle dimensions – Ford Transit Custom L2 from 2024
| Designation |
Wheelbase |
Overall length |
Cargo area length |
Vehicle height |
| L2H1 |
3,500 mm |
5,450 mm |
3,002 mm |
1,959 mm |
Note: The vehicle length can be found in the vehicle registration document under point 18, the vehicle height under point 20, and the year of manufacture under point 6.
Material structure of the aluminum checker plate floor
The transporter floor combines several materials to achieve maximum stability and durability. The base is made of high-quality birch plywood, which was specially developed for use in vehicles.
- 9 mm or 12 mm thick birch plywood
- phenolic resin glued according to EN 312-2 / Class 3
- 1.5–2.0 mm aluminum checker plate
- Oil, water, and wear-resistant surface
- UV-resistant and durable
This combination of materials ensures a particularly resistant loading area – ideal for intensive use in everyday commercial life.
Easy installation in the cargo area
The transporter floor for the Ford Transit Custom L2 is delivered in several parts. This makes it easier to insert the segments into the cargo area and position them precisely.
Once in place, the individual panels are screwed together. This creates a stable, closed loading area that holds reliably even with heavy loads.
The lashing recesses supplied are inserted into the designated recesses and secured using the vehicle's original lashing points.
Optional: Airline rails for professional load securing
For professional applications, the transporter floor can be optionally equipped with airline rails. These enable flexible and secure load securing in the cargo area.
- Airline rails approx. 0.9 m long
- ideal for locking bars or lashing straps
- Precisely milled and glued
- only possible with 9 mm floor panels
Aluminum checker plate or screen-printed floor – the difference
Different cargo area floors are used depending on the area of application. While classic screen-printed floors are often used in standard vehicles, an aluminum checker plate floor offers additional advantages in daily commercial use.
🔍 Comparison – aluminum checker plate vs. screen-printed floor
| Feature |
Aluminum checker plate |
Screen-printed floor |
| Slip resistance |
Very high |
Medium |
| Resistance to wear |
Very high |
High |
| Cleaning |
Very easy |
Good |
| Area of application |
Intensive commercial use |
Standard cargo area protection |
Conclusion: Robust cargo area protection for the Ford Transit Custom L2
An aluminum checker plate transporter floor for the Ford Transit Custom L2 from 2024 offers a durable and resilient solution for everyday work use. The combination of birch plywood carrier plate and aluminum surface effectively protects the vehicle floor while ensuring a safe, slip-resistant loading area.
Frequently asked questions about the Ford Transit Custom L2 transporter floor
Which Ford Transit Custom is the floor suitable for?
The van floor is suitable for the Ford Transit Custom with a long wheelbase (L2) from 2024 onwards.
How thick is the van floor?
The floor is available in 9 mm or 12 mm thick birch plywood panels with aluminum checker plate.
Can the floor be equipped with airline rails?
Yes. Airline rails can be integrated as an option and enable flexible load securing.
Is the transporter floor slip-resistant?
Yes. The aluminum checker plate surface ensures a particularly slip-resistant loading area.
Is the floor also suitable for station wagons?
No. This floor is intended exclusively for panel vans without seat rails.
